The consumer accent lighting market has changed dramatically over the last decade. We have moved far beyond old-school incandescent rope lights into high-efficiency flexible light-emitting diode arrays. In the budget residential accent lighting category, the FlexGLO XL LED Strip Light by Merkury Innovations (part numbers MI-LST04-999 and MIC-LST04-999W) occupies a massive retail footprint. Promoted as an affordable, plug-and-play decorative lighting kit, this product promises full-spectrum RGB color tuning, dynamic animation modes, cut-to-length flexibility, and hassle-free remote operation.

Before diving into the hardware, it is critical to clarify product naming within the broader lighting market. The “FlexGLO” label appears across wildly different commercial segments. For instance, heavy architectural mesh systems like the RGBLights FlexiFlex XL 4.0—a massive 40-pound steel mesh array designed for building facades—serve high-end structural visual engineering. Similarly, commercial silicone extrusions like the Clear Lighting Flexglo F22 series target heavy exterior installations. The subject of our hands-on evaluation today is strictly the consumer-grade FlexGLO XL from Merkury Innovations: a flexible 12-to-13.1-foot polymer-coated circuit ribbon driven by a 12V wall adapter and managed via an infrared controller.

In this detailed review for TheKZVerse, we take a hands-on look at the unboxing, physical construction, electrical engineering, photometric tuning, adhesive setup mechanics, weatherproofing limits, and real-world failure points of the FlexGLO XL. Is this budget light strip the ultimate ambient lighting upgrade, or are there hidden trade-offs? Let us find out!

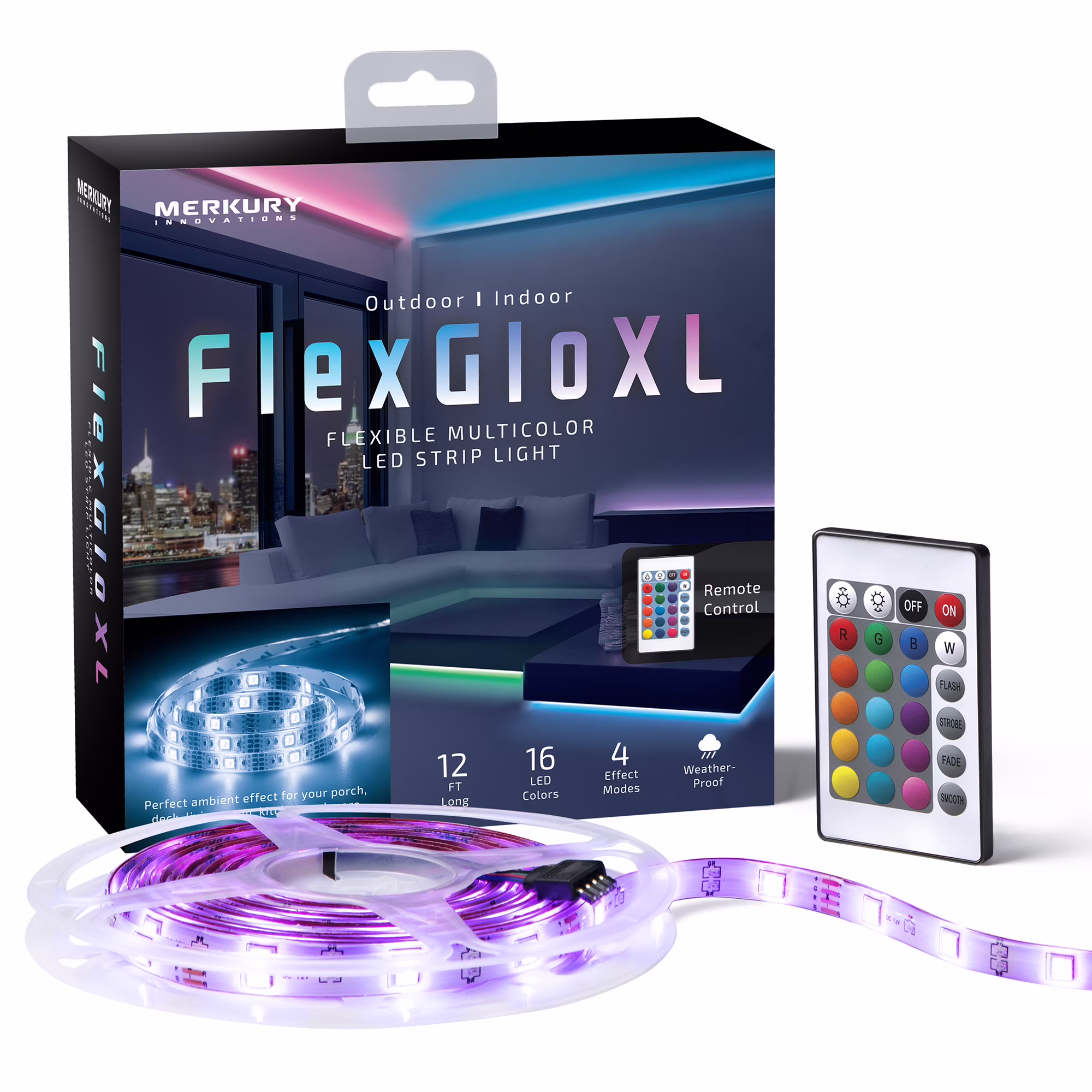

Unboxing and Electro-Mechanical Architecture

Opening the box reveals a compact setup that contains everything required to get your ambient lighting operational within minutes. The core of the system is a multi-layer flexible printed circuit board (FPCB) strip available in 12-foot (144 inches) or extended 13.1-foot (157.2 inches) retail versions. Measuring just 0.25 inches wide and 0.1 inches tall, the physical substrate fits easily into tight architectural slots, desk valances, or TV backpanel channels. If you enjoy exploring cool budget gear, feel free to browse our Gadgets Category for similar home upgrades.

Across the FPCB ribbon, Merkury Innovations mounts 120 discrete surface-mount device (SMD) LED packages. This density calculates to approximately 10 LEDs per linear foot. This specific spacing confirms that the FlexGLO XL is designed primarily for indirect wall-washing, backlighting, and accent illumination rather than ultra-bright primary task lighting. To see our full unboxing and visual demonstration in action, watch our video below:

Power Delivery and 12V Bus Architecture

Power conversion relies on a corded electrical topology using an external AC-to-DC wall transformer. The adapter plugs into a standard 120V household wall outlet and steps down grid power to a regulated 12-Volt DC output rated at 2.5 Watts total consumption. Utilizing a 12V bus design offers a major technical advantage over cheap 5V USB-powered LED strips. Because thin copper traces inside flexible circuit boards possess natural resistance, long low-voltage wire runs suffer from linear voltage drop.^[1]

On a 5V LED strip, this internal electrical resistance causes visible dimming and color shifting at the far end of the ribbon. By stepping up to a 12V potential, the FlexGLO XL maintains consistent current density across its full 12-to-13.1-foot span. The result is uniform lumen output and color accuracy from the power input header all the way to the final LED node. For more deep-dive product evaluations, head over to TheKZVerse Tech Reviews.

Hardware Specifications Table

Check Price on Amazon for FlexGLO XL

Photometric Performance and Color Synthesis

The optical performance of the FlexGLO XL rests on tri-color RGB semiconductor dies co-packaged within each SMD emitter node. Color output and brightness modulation are controlled by an inline IR receiver module equipped with a Pulse-Width Modulation (PWM) microcontroller. By rapidly toggling electrical current to the red, green, and blue dies at high frequencies, the controller changes the perceived color blend, enabling rendering of 16 distinct static presets along with a dedicated white light selection.

The static spectrum consists of four primary channels—Red, Green, Blue, and White—complemented by 12 intermediate blended hues. In standard tri-color RGB light strips, producing white light requires running red, green, and blue diodes at maximum output simultaneously. The FlexGLO XL achieves a correlated color temperature (CCT) of approximately 4500 Kelvin, rendering a clean neutral-white output suited for media backlighting, shelf accents, and desk ambient lighting.

Dynamic Animation Modes and Remote Logic

The system features four preprogrammed dynamic animation modes that adjust light output based on user choice:

• Flash Mode: Executes hard step-transitions between primary colors at high frequencies, creating dynamic visual shifts for parties or active scenes.
• Strobe Mode: Introduces rapid duty-cycle pulsing with short intermediate blackout phases, generating a distinct rhythmic strobe effect.
• Fade Mode: Applies smooth linear attenuation across channels, gently decreasing one wavelength while raising another for seamless color morphing.
• Smooth Mode: Uses a soft-transition algorithm that cycles through all 16 static colors without harsh jumps, delivering non-distracting ambient backlighting.

Adjusting overall brightness using the remote control triggers the PWM microcontroller to alter the duty cycle across all modes. Lowering brightness reduces operational power draw below the 2.5-Watt ceiling, reducing thermal buildup inside the polymer encapsulation layer and protecting the internal LEDs over their 25,000-hour lifespan.

Substrate Mechanics, Cut Lines, and Installation Physics

Properly installing the FlexGLO XL requires paying close attention to substrate cleaning, electrical polarity, and trimming boundaries. Failing to observe these basic rules accounts for most premature adhesive failures and open-circuit errors encountered by users. For additional unboxing guides and hands-on setup walkthroughs, check out TheKZVerse Unboxings Category.

Pressure-Sensitive Adhesive Surface Preparation

The rear face of the FlexGLO XL is equipped with a pressure-sensitive adhesive (PSA) tape layer intended to bond with smooth mounting surfaces. However, adhesive strength relies heavily on surface cleaning. Surfaces such as sealed wood, painted drywall, aluminum, or acrylic must be wiped down with isopropyl alcohol to clear away dust, grease, and surface oils prior to mounting. Standard household detergents containing silicones leave behind thin anti-adhesion barriers that weaken the glue.

Additionally, placing the adhesive in ambient temperatures below 50°F (10°C) prevents proper bond wetting, severely reducing initial tack strength. Installers should apply continuous firm pressure along the entire length of the ribbon during setup to maximize contact surface area between the adhesive strip and the host material.

Circuit Trimming and Polarity Realities

To fit variable mounting lengths, the FlexGLO XL uses a parallel-series electrical topology. The flexible ribbon is segmented into functional circuit blocks consisting of series clusters of SMD LEDs and current-limiting resistors wired across parallel power bus lines. Trimming must occur strictly at designated copper contact pads, which feature printed scissor icons. Cutting along these designated marks leaves exposed copper terminals on both sides, maintaining circuit continuity for the powered section while isolating the trimmed tail.

“If you cut through the ribbon anywhere outside the designated copper solder pads, the internal series loop of that cluster is severed permanently. This creates an unlit dead zone stretching to the next copper contact pair.”

The electrical connection between the IR receiver module wire and the strip header uses a 4-pin directional plug design. Both the controller socket housing and the strip header feature small molded alignment arrows. These arrows must point directly face-to-face during connection. Correct orientation connects the +12V DC common anode lead to the positive bus rail, while mapping the remaining three pins to the ground-switched Red, Green, and Blue cathode traces. Reversing this plug puts the diodes into a reverse-bias state where the strip will fail to light until reinserted properly.

Environmental Encapsulation and Outdoor Weatherproofing Limits

Retail packaging and store descriptions for the Merkury Innovations FlexGLO XL often highlight terms like “weatherproof coating” or “waterproof ribbon,” implying the product is ready for outdoor installations like decks or patio eaves. However, an engineering look at the individual components reveals important distinctions between ribbon protection and external electrical vulnerability.

While the transparent polymer resin sheath shields the delicate copper traces on the ribbon from light splashing and dust, the surrounding system lacks weatherproofing. Moisture entering the unsealed 4-pin joint under a active 12V DC current triggers rapid galvanic oxidation. Galvanic corrosion degrades copper terminals, producing green copper oxide deposits that cause intermittent flickering, current leakage, and electrical failure. Safely mounting the FlexGLO XL outdoors requires housing the IR controller box and AC wall adapter inside a sealed IP65 or NEMA-rated weather-tight junction enclosure.

Smart Home Integration and Hardware Modifications

Understanding where the FlexGLO XL fits within smart home tech requires distinguishing between standalone IR hardware and app-connected platforms. The base model analyzed here functions through local infrared signals using the included 24-key remote. It lacks built-in Wi-Fi or Bluetooth radios, meaning it operates independently of wireless network pairing, app accounts, or cloud connections.

Merkury Innovations also sells app-connected smart home products under both its main brand and its sister label, Geeni. Those smart models utilize Tuya Wi-Fi microcontrollers to integrate with smart assistants like Google Home and Amazon Alexa. However, budget app-connected products carry long-term software risks. In past instances, users of specialty Merkury smart devices noted companion apps getting removed or region-locked on the Google Play Store and Apple App Store, leaving app features inaccessible unless replacement apps were released.

Because the standalone FlexGLO XL uses standard 12V FPCB pin configurations with accessible copper terminals, hardware enthusiasts frequently modify the strip. By removing the stock IR receiver unit and soldering an open-source microcontroller—such as an ESP32 board running WLED firmware—users can convert this budget ribbon into a locally controlled smart lighting node. This simple modification eliminates cloud risks and allows smooth integration into local automation hubs like Home Assistant.

Market Competitors Comparison

To evaluate overall market value, it helps to see how the Merkury Innovations FlexGLO XL compares against other popular budget RGB LED strip lights in the residential space.

Pros, Cons, and Common Failure Modes

Every budget gadget brings clear advantages alongside structural trade-offs. Here is our breakdown of real-world pros, cons, and potential failure points for the FlexGLO XL.

The Pros (What Works Well)

• 12V Architecture: Ensures consistent lumen output and accurate color performance across the entire 12-to-13.1-foot strip length without voltage drop.
• Offline Reliability: Plug-and-play IR control operates instantly without smart home setup, Wi-Fi pairing drops, or cloud app updates.
• Clean White Mode: Renders a crisp ~4500K neutral white ideal for media backlighting and workspace accenting.
• Easy Customization: Clear copper cut marks allow easy trimming to fit specific mounting spaces.

The Cons (What Needs Improvement)

• Adhesive Degradation: Operational heat from the circuit ribbon can soften the factory rear adhesive over time, causing vertical runs to sag.
• IR Line-of-Sight Limits: The remote receiver bulb must remain visible; blocking it behind thick cabinets stops remote command signaling.
• Unprotected Peripheral Plug: The 4-pin joint and IR control box lack weather seals, risking galvanic corrosion if exposed to outdoor humidity.

Comprehensive Diagnostics & Troubleshooting FAQ

If you run into operational issues while setting up or using your FlexGLO XL, review these step-by-step diagnostic answers:

Final Verdict and Purchasing Recommendation

The Merkury Innovations FlexGLO XL LED Strip Light stands out as a reliable budget option for residential accent lighting. Thanks to its 12V DC power platform, it delivers uniform brightness and accurate color reproduction across its full length without suffering from the end-of-strip dimming common in cheaper 5V USB alternatives. Its simple offline IR remote operation guarantees straightforward setup, avoiding the Wi-Fi pairing glitches and mobile app deprecation risks found in low-cost smart products.

Achieving durable, long-term performance requires basic installation care: clean mounting surfaces thoroughly with isopropyl alcohol, add support clips for vertical runs, maintain line-of-sight for the IR sensor, and protect peripheral electrical connections inside weather-tight boxes if placed outdoors. For viewers and readers of TheKZVerse seeking a budget ambient lighting upgrade for TV backlighting, desk setups, or bedroom accents, the FlexGLO XL offers impressive lighting value for money.
